Setup BYOC with GCP

BYOC is one of our setup options, which install our platform's infrastructure in a cloud environment owned by your organization, allowing you to delegate its entire setup, update, and maintenance to groundcover.

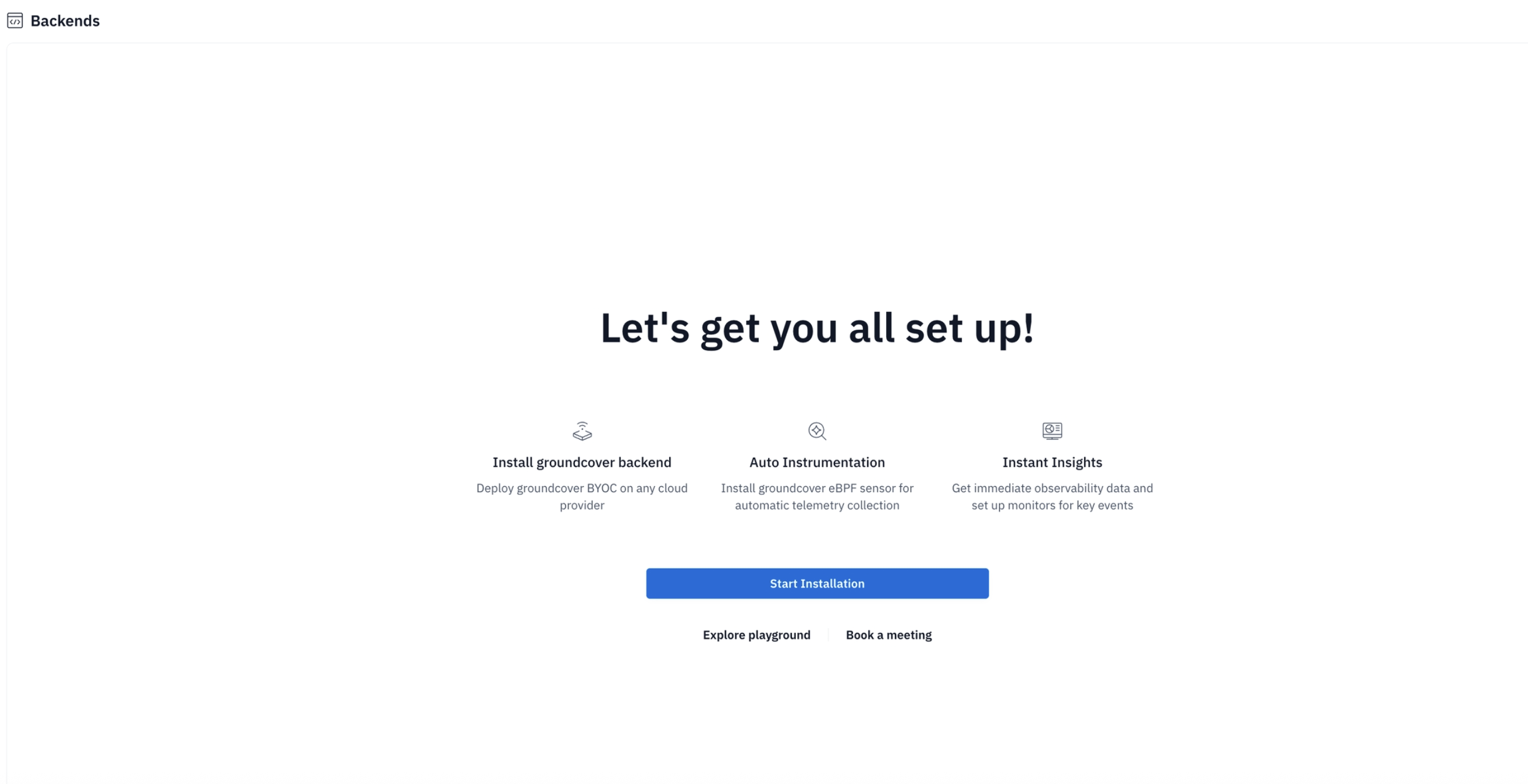

To install groundcover BYOC, sign up to groundcover Console and start the installation process.

Installation steps

BYOC requires to create an isolated account within your GCP organization, that will be managed by groundcover's control plane and will establish, configure, and maintain the infrastructure and workloads within the account. These include GCP VPC, GCS, GKE, and LB services.

Once created, provide the service account and project ID. groundcover will validate proper permissions and the deployment will start. The deployment process will take about 30 minutes and afterwards you can go to your app workspace and connect your production environment to be monitored by groundcover.

Setting up a service account

Follow the below steps to create a service account:

1. Create a service account with project owner access

To manage resources in your environment, you need a dedicated service account with project owner permissions:

• Go to IAM & Admin > Service Accounts in the GCP Console.

• Click Create service account.

• Name your service account and service account ID groundcover-managed or any other meaningful name.

• Click Create and continue.

• In the "Permissions" section, select Role > Owner.

• Click Continue and Done.

1. Allow the service account to create access tokens

Next, you need to allow the service account to generate access tokens for project admin tasks:

• Click on the newly created service account from the list.

• Go to the "Principals with access" tab.

• Click "Grant Access".

• Under Add principals, add the following service account: [e-mail].

• Under Assign roles, choose Service Account Token Creator.

• Press Save.

1. Enable the Service Usage API

Now, you need to enable the Service Usage API for the project:

• Use the search bar in the GCP Console to find "Service Usage API".

• Click on it, then hit "Enable".

1. Disable service account key creation constraint

Certain groundcover workloads require service accounts with HMAC keys, which means a rule needs to be added in the new GCP Project to disable this policy.

• Start by selecting the relevant project from the project picker, then browse to IAM & Admin > Organization policies and search for the "Disable service account key creation" constraint.

• Choose the highlighted constraint and click on Manage policy.

• Click on Add a rule and set Enforcement to Off.

• Save it by clicking on Set policy.

groundcover GCP organization details

If your organization enforces Service Control Policies (SCPs) or organization policies that restrict access by organization or customer, you may need to allow-list groundcover's GCP identifiers so the managed service account can operate against your project:

• Organization ID: 979668464296

• Customer ID: C019vy3qc

Use these values when configuring policy exceptions (e.g. constraints/iam.allowedPolicyMemberDomains, resourcemanager.allowedExportDestinations, or any SCP/org policy that filters by org or customer).

Troubleshooting

There are 2 types of potential problems you may encounter in the installation process:

1. Validation issues - before kicking off the installation process, groundcover will verify that the provided service account has the correct permissions. In case of validation issues, please expand the relevant section and address the validation issue. After the issue is fixed, click on Validate again to ensure all the permissions were granted properly.

2. Deployment issues - once the installation process has started, we may encounter issues while attempting to install one or more components. These issues will appear in the backends main screen.

If any of the above issues persist, reach out to our team.

Add monitoring to your environment

Once groundcover backend is deployed, the final step is to add data sources to monitor your environment, such as deploying our sensors to monitor your clusters or add cloud providers. To do so, go to the data sources page and select the relevant data sources for your needs.
